ZWWS Series 5 Firepass Oil (Gas) Steam Boiler-WNS Oil Gas Steam boiler-Henan Taiguo Boiler Manufacturing Co.,Ltd.

Description

Brief Introduction

The small water volume, fast steam generating. ZWLH/ZWWS Series steam boiler has vertical design and compact structure, just requires small floor space;
Adopting large-volume steam chamber, and lay-in steam/water separator can produce high-quality steam stably;
The lay-in low water level protection device to detect the change of water level at any time, totally avoid dry-burning and operation accidents;

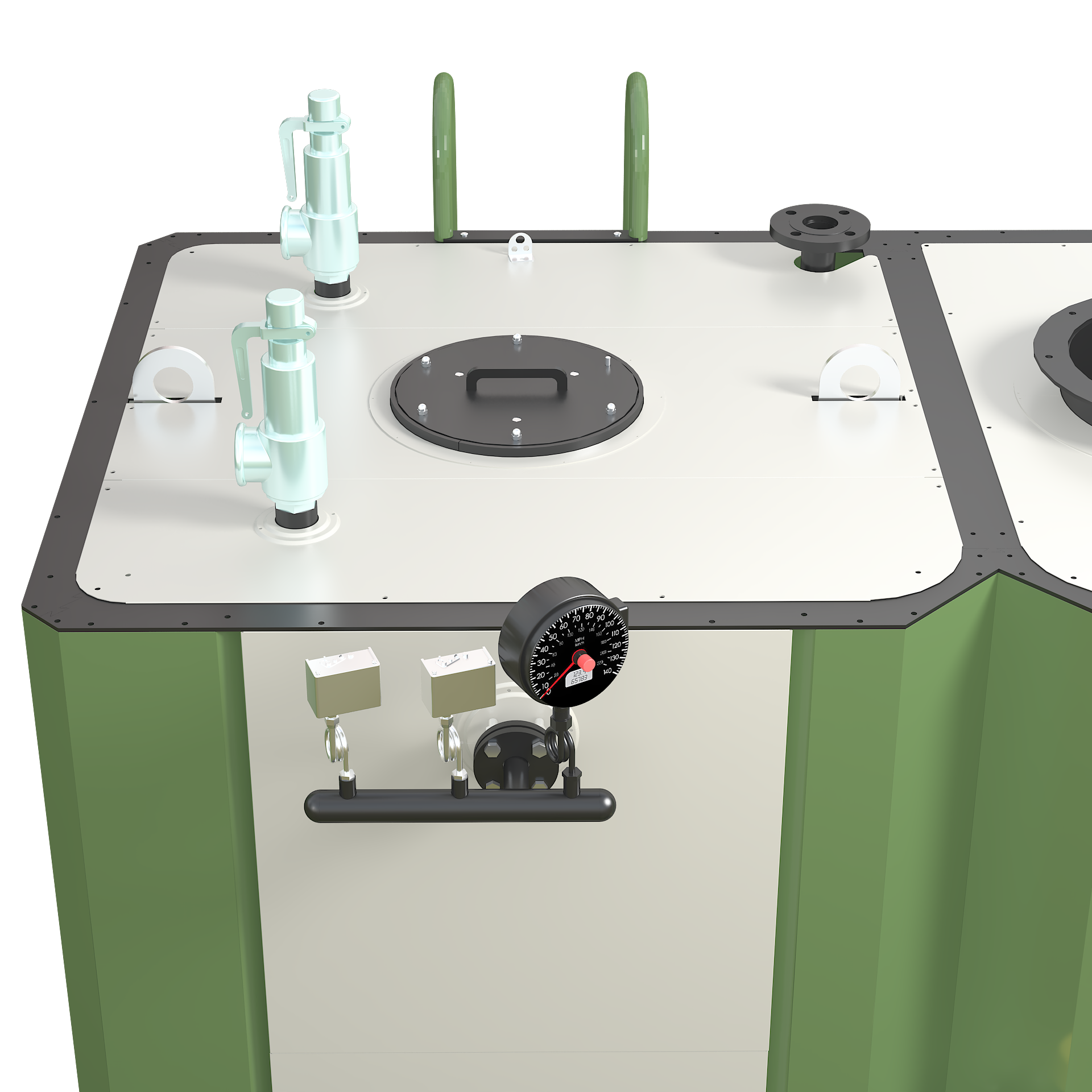

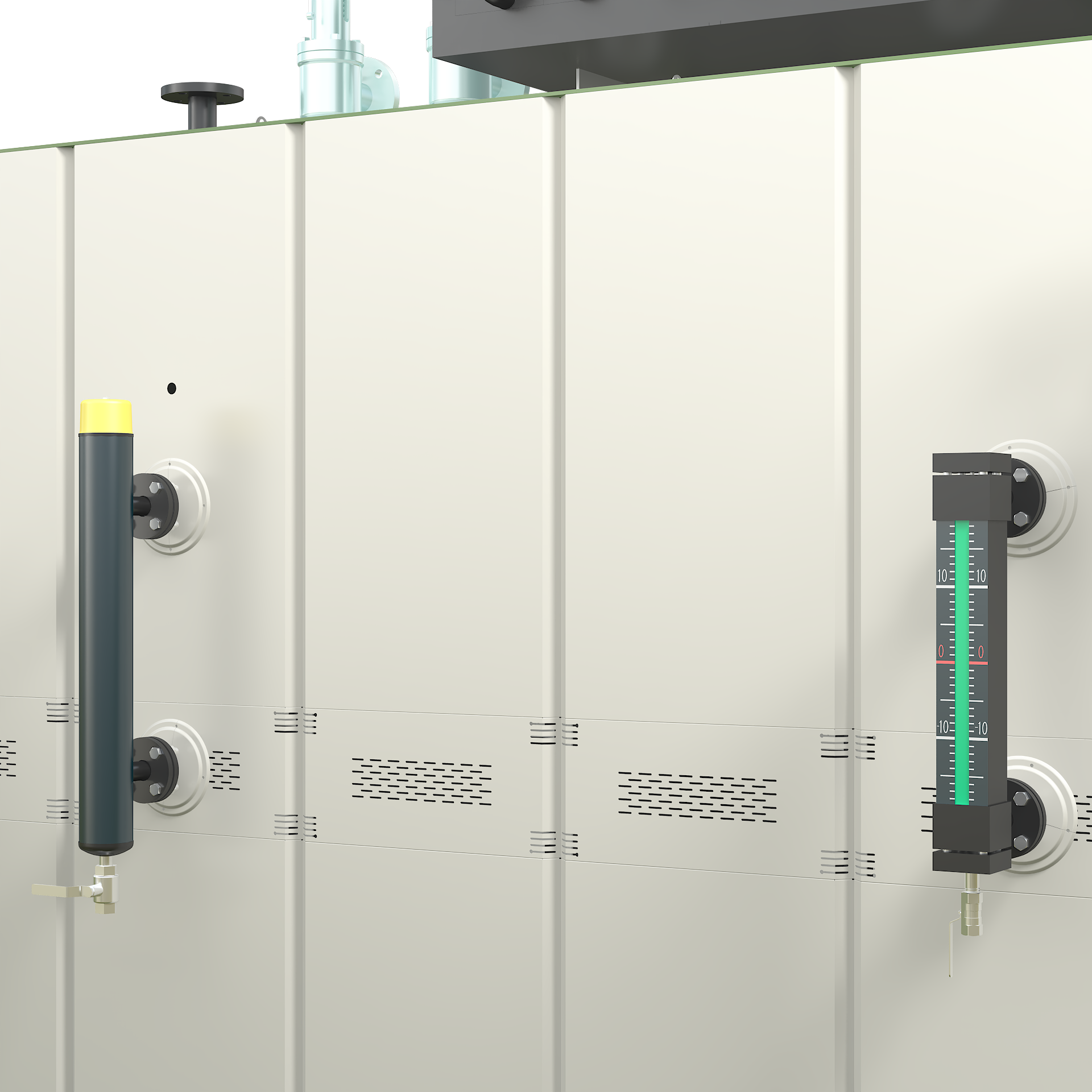

ZWLH/ZWWS Series vertical type steam boiler is equipped with high-quality pressure relief valve, water level electrode, water level gauge, pressure gauge, pressure controller, to ensure
boiler's reliable operation.

Product Application

Textile, Garment, Food & Beverage, Chemical Industry, Cement Curing, Disinfection,etc

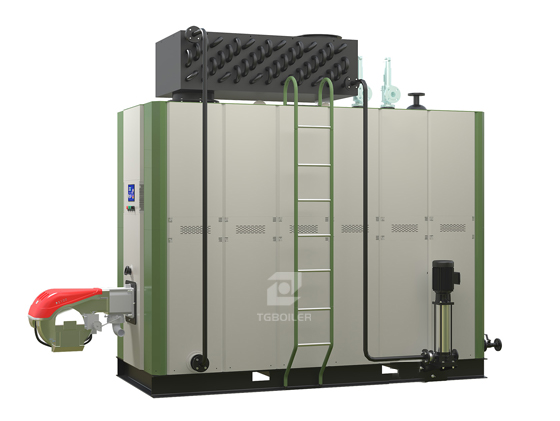

产品图加水印560 420.jpg

Parameter

Model	Rated steam Capacity (Kg/H)	Rated steam Pressure (Bar)	Rated steam Temperatur (℃)	Boiler Type	Dimension (mm) Weight (kg)
ZWLH0.1-0.7-Y(Q)	100	7	170	firetube	8067561609mm， 391KG
ZWLH0.2-0.7-Y(Q)	200	7	170	firetube, built-in economizer	14567001776mm, 814KG
ZWLH0.3-0.7-Y(Q)	300	7	170	firetube, built-in economizer	16817501880mm, 1315KG
ZWLH0.4-0.7-Y(Q)	400	7	170	firetube, built-in economizer	1900x1000x2000mm, 1838KG
ZWLH0.5-0.7-Y(Q)	500	7	170	firetube, built-in economizer	181613691848mm, 1569KG
ZWLH0.75-0.7-Y(Q)	750	7	170	firetube, built-in economizer	238514082192mm, 1838KG
ZWWS0.75-1.25-Y(Q)	750	13	194	firetube, built-in economizer	210216612249mm, 2662KG
ZWLH1.0-0.7-Y(Q)	1000	7	170	firetube, built-in economizer	195915052355mm, 2205KG
ZWWS1.0-1.25-Y(Q)	1000	13	194	firetube, external economizer	244617202228mm, 3166KG
ZWLH1.5-0.7-Y(Q)	1500	7	170	firetube, built-in economizer	237012002499mm, 2940KG
ZWWS1.5-1.25-Y(Q)	1500	13	194	firetube, external economizer	317016202515mm, 4283KG
ZWLH2.0-0.7-Y(Q)	2000	7	170	firetube, built-in economizer	248817502705mm, 3098KG
ZWWS2.0-1.25-Y(Q)	2000	13	194	firetube, external economizer	347119462540mm, 4673KG
ZWLH2.5-0.7-Y(Q)	2500	7	170	firetube, built-in economizer	262718442795mm, 3823KG
ZWWS2.5-1.25-Y(Q)	2500	13	194	firetube, external economizer	350518582825mm, 6455KG
ZWLH3.0-0.7-Y(Q)	3000	7	170	firetube, built-in economizer	273019182995mm, 4719KG
ZWWS3.0-1.25-Y(Q)	3000	13	194	firetube, external economizer	380919182930mm, 6432KG
ZWLH3.5-0.7-Y(Q)	3500	7	170	firetube, built-in economizer	294020143082mm, 5695KG
ZWWS3.5-1.25-Y(Q)	3500	13	194	firetube, externaleconomizer	380919883075mm, 8167KG
ZWLH4.0-0.7-Y(Q)	4000	7	170	firetube, built-in economizer	304020153182mm, 6464KG
ZWWS4.0-1.25-Y(Q)	4000	13	194	firetube, external economizer	410617893080mm, 8180KG
