With the global push toward carbon neutrality and green development, biomass boilers have gained popularity in recent years in countries and regions such as Southeast Asia, Europe, and South America, where there is a strong emphasis on environmental protection and the utilization of agricultural waste.

As a professional boiler supplier, Henan TGBOILER Industrial Co., Ltd. (TGBOILER) will provide a detailed introduction to our biomass steam boiler series, covering product specifications, features, and application scenarios.

Main Types of TGBOILER Biomass Steam Boilers

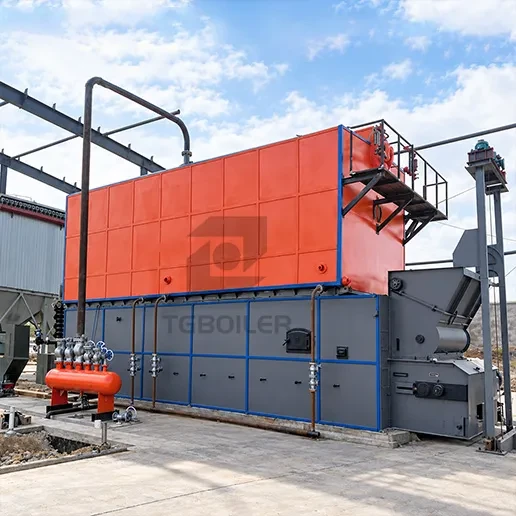

1. DZL Series Chain-Grate Biomass Steam Boilers (Horizontal Water-Tube and Fire-Tube Chain-Grate Boilers)

• Specifications: Steam output 1 t/h – 10 t/h, operating pressure 0–1.6 MPa

• Features: Features a horizontal single-drum design, combining water-tube and fire-tube mixed combustion, equipped with a movable chain grate for automatic fuel feeding and ash removal. It offers strong fuel adaptability and is fitted with a high-efficiency dust removal system, ensuring zero pollution;

• Applications: Food processing plants, textile and dyeing mills, paper mills, wood processing plants, rice mills, chemical plants, agricultural product processing plants, etc.

2. SZL Series Double-Drum Horizontal Biomass Chain Grate Boiler (Double-Drum Chain Grate Boiler)

• Specifications: Steam output 4 t/h – 20 t/h, operating pressure 0–2.5 MPa

• Features: Large furnace chamber with ample radiant heat transfer surface; wide fuel adaptability, complete combustion, and high thermal efficiency; equipped with advanced chain grate for high combustion efficiency, automatic fuel feeding, and automatic ash removal, suitable for industrial applications requiring higher capacity.

• Application: Large chemical plants, paper mills, dairy plants, large and medium-sized palm oil mills, large sugar mills, large textile and dyeing enterprises, etc.

3. DZH Series Manual Combustion/Reciprocating Grate Biomass Steam Boiler (Horizontal Single-Drum Fixed Grate Boiler)

• Specifications: Steam output 0.5 t/h – 6 t/h, operating pressure 0–1.6 MPa

• Features: Features a horizontal single-drum design with a fixed grate. It offers a compact structure, low initial investment, strong fuel compatibility, minimal requirements for fuel particle size, high cost-effectiveness, and is low-carbon and environmentally friendly.

• Applications: Small and medium-sized processing plants in regions rich in agricultural resources, such as rice mills, rubber mills, small oil mills, feed mills, textile mills, sugar mills, lumber mills, and rubber processing plants.

4. LHG Series Vertical Biomass Steam Boiler (Vertical Biomass Steam Boiler)

• Specifications: Evaporation capacity 0.3 t/h – 4 t/h.

• Features: Three-pass fire-tube structure; compact vertical design; small footprint; quick installation; rapid steam generation; low investment cost; highly suitable for burning biomass pellets and various agricultural waste materials such as fruit shells.

• Applications: Small-scale breweries, garment pressing facilities, small food processing plants, tea factories, greenhouses, etc.

Biomass steam boilers not only reduce operational costs but also help factories achieve green and sustainable development, which is of great significance to a company’s long-term growth. Therefore, customers can select the appropriate biomass steam boiler based on their actual needs.

If you are looking for a biomass steam boiler suitable for your factory, or are unsure which model is best suited for your local fuel sources (such as wood chips, rice husks, or palm shells), please feel free to contact us. Our team of engineers will provide you with professional technical support and a free quote!
