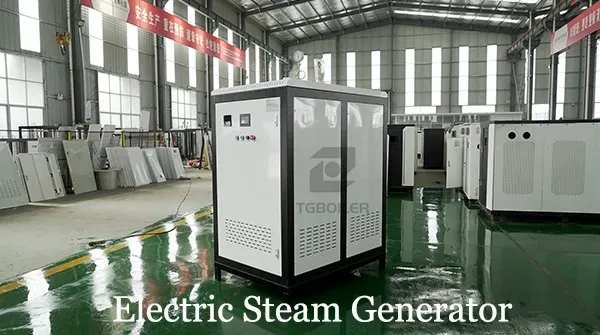

TGBOILER is a certified, professional boiler supplier dedicated to providing one-stop industrial boiler solutions to customers worldwide. Currently, TGBOILER offers two mainstream electric steam boiler models: the LDR vertical electric steam generator and the WDR horizontal electric steam boiler. These models are widely favored in the market for their high thermal efficiency, clean and eco-friendly operation, and zero pollution. This article primarily introduces the advantages of the electric steam boilers manufactured by TGBOILER, providing a reference for businesses selecting the right boiler model.

The 4 Core Advantages of TGBOILER Electric Steam Boilers:

I. High Safety Performance

Electric steam boilers are equipped with multiple safety protection mechanisms, including ground fault protection, low-water protection, overpressure protection, and grounding protection, ensuring stable boiler operation.

• 1. Ground Fault Protection: Monitors leakage current in real time and automatically cuts off the power supply immediately in the event of a ground fault or risk of electric shock, ensuring personal safety.

• 2. Low-Water Protection: The water level inside the boiler is monitored in real time. When the boiler reaches a low water level or runs out of water, the control circuit for the heating elements is automatically cut off to prevent damage from dry burning. At the same time, the controller issues a low-water alarm.

• 3. Steam Overpressure Protection: When the boiler’s steam pressure exceeds the set upper limit, the pressure controller automatically triggers an alarm, and the safety valve opens to directly release excess steam, reducing the pressure to a safe range.

• 4. Grounding Protection: When the boiler casing becomes electrically charged, leakage current is conducted to the ground via the grounding wire, ensuring personal safety. Generally, the protective grounding wire should be properly grounded. Angle iron and steel pipes buried underground are typically used as grounding electrodes.

• 5. Overcurrent Protection: When the boiler’s operating load is too high or a short circuit occurs, causing the current to exceed the preset safety threshold, the protective device (such as a circuit breaker or fuse) will automatically trip.

• 6. Electric Heating System Protection: By using electricity to power the heating process instead of combustion methods such as coal or gas, traditional fire hazards—including fuel oil leaks, gas explosions, and carbon monoxide poisoning—are fundamentally eliminated, resulting in smoother and more reliable overall operation.

II. Convenient and Quick Operation

1. Fully Automatic Operation

The boiler is equipped with a PLC intelligent control system. With a single-button start, the boiler automatically completes the entire process of water replenishment, heating, automatic pressure regulation, and steam generation.

It features comprehensive automatic protection functions (such as overpressure, low-water, and ground fault protection). If an abnormality occurs, the system will automatically shut down and trigger an alarm.

2. Ready to Use Immediately with Fast Steam Generation

Once turned on, the electric steam boiler typically produces high-quality steam in just a few minutes, significantly reducing production setup time.

3. Compact Design and Easy to Move

The TGBOILER electric steam boiler features an integrated design that takes up minimal floor space. It can be put into service immediately upon connecting to a power source and water supply, making it easy to move.

4. Simple Maintenance

The boiler uses electricity as its heat source and produces no pollution. Maintenance requires only periodic inspection of the electric heating elements, resulting in minimal workload.

III. More Rational Boiler Design and Structure

1. Minimalist Structure, Eliminating Complex Combustion Systems

The overall structure consists of electric heating elements, a pressure vessel (shell), a makeup water system, and a control cabinet. This significantly reduces the boiler’s size, resulting in a smaller footprint than traditional boilers and saving space.

2. Mechatronic Design

The control cabinet and boiler body typically feature an integrated or compact split-type design. The PLC (Programmable Logic Controller), which serves as the control core, interfaces directly with the boiler’s pressure and water level sensors.

3. Intelligent Power-Stage Control

The total heating power is divided into stages based on demand. The controller automatically cycles the power on and off according to the load, which not only protects the power grid from surges but also reduces internal temperature differences to extend equipment lifespan, while meeting flexible power consumption needs.

IV. More Reliable Boiler Operation

1. High Standards for Manufacturing Processes and Materials:

During the manufacturing process, TGBOILER employs methods such as steel strength testing, automated steel cutting/rolling/welding, 100% X-ray weld inspection, magnetic particle testing, C-scan ultrasonic testing, fluorescent penetrant testing, hydrostatic testing, and boiler thermal efficiency testing to ensure all finished products meet specifications and guarantee long-term, normal boiler operation.

2. Automation and Protection Systems

• Intelligent Control System: Equipped with an advanced PLC boiler control system that enables fully automatic operation, load regulation, and data monitoring.

• Multi-Layer Safety Protection System: Features multiple protection and alarm devices for overpressure, low water level, overcurrent, and electrical leakage. In the event of an anomaly, the system automatically cuts off the power supply to prevent the incident from escalating.
